FAG主轴轴承 HCM系列

HCM系列：

HCM系列X-life高速主轴轴承配备

陶瓷滚珠和轧制轴承钢100Cr6材质的套圈。由于具有高性能以及可适应极高速工况，HCM主轴轴承可以提高电主轴的性能。

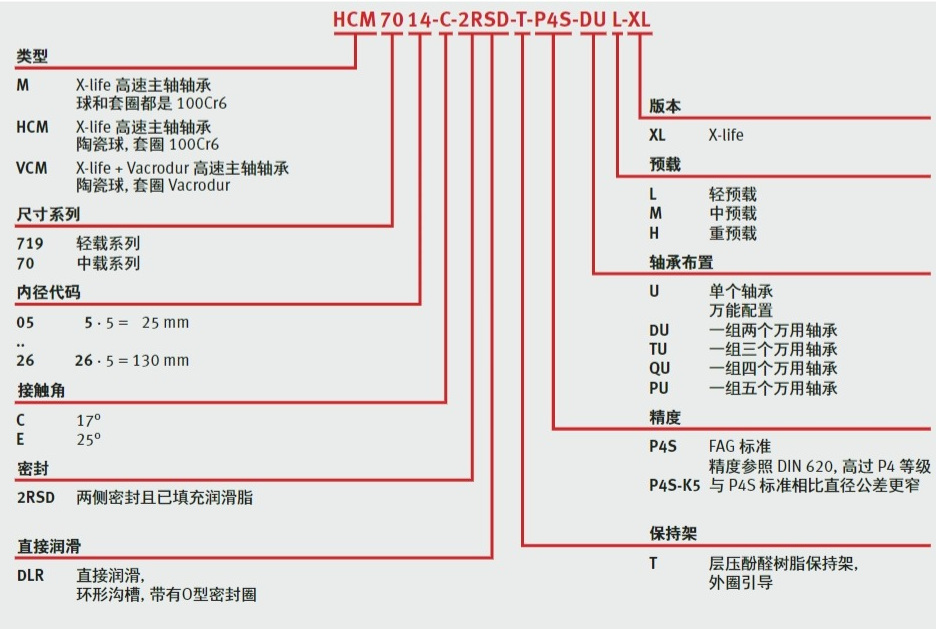

FAG M系列轴承型号字母释义：

HCM:X-life高速主轴轴承陶瓷球，套圈100Cr6

C:接触角17°

E:接触角25°

T:层压酚醛树脂保持架，外圈引导

P4S:FAG标准，精度参照DIN620,高过P4等级

U:代表单个轴承***装置

L:轻预载

XL:版本X-life

FAG  HCM系列主轴轴承型号推荐：

HCM71905C-T-P4S-UL-XL   HCM71905E-T-P4S-UL-XL   HCM7005C-T-P4S-UL-XL   HCM7005E-T-P4S-UL-XL

HCM71906C-T-P4S-UL-XL   HCM71906E-T-P4S-UL-XL   HCM7006C-T-P4S-UL-XL   HCM7006E-T-P4S-UL-XL

HCM71907C-T-P4S-UL-XL   HCM71907E-T-P4S-UL-XL   HCM7007C-T-P4S-UL-XL   HCM7007E-T-P4S-UL-XL

HCM71908C-T-P4S-UL-XL   HCM71908E-T-P4S-UL-XL   HCM7008C-T-P4S-UL-XL   HCM7008E-T-P4S-UL-XL

HCM71909C-T-P4S-UL-XL   HCM71909E-T-P4S-UL-XL   HCM7009C-T-P4S-UL-XL   HCM7009E-T-P4S-UL-XL

HCM71910C-T-P4S-UL-XL   HCM71910E-T-P4S-UL-XL   HCM7010C-T-P4S-UL-XL   HCM7010E-T-P4S-UL-XL

HCM71911C-T-P4S-UL-XL   HCM71911E-T-P4S-UL-XL   HCM7011C-T-P4S-UL-XL   HCM7011E-T-P4S-UL-XL

HCM71912C-T-P4S-UL-XL   HCM71912E-T-P4S-UL-XL   HCM7012C-T-P4S-UL-XL   HCM7012E-T-P4S-UL-XL

HCM71913C-T-P4S-UL-XL   HCM71913E-T-P4S-UL-XL   HCM7013C-T-P4S-UL-XL   HCM7013E-T-P4S-UL-XL

HCM71914C-T-P4S-UL-XL   HCM71914E-T-P4S-UL-XL   HCM7014C-T-P4S-UL-XL   HCM7014E-T-P4S-UL-XL

HCM71915C-T-P4S-UL-XL   HCM71915E-T-P4S-UL-XL   HCM7015C-T-P4S-UL-XL   HCM7015E-T-P4S-UL-XL

HCM71916C-T-P4S-UL-XL   HCM71916E-T-P4S-UL-XL   HCM7016C-T-P4S-UL-XL   HCM7016E-T-P4S-UL-XL

HCM71917C-T-P4S-UL-XL   HCM71917E-T-P4S-UL-XL   HCM7017C-T-P4S-UL-XL   HCM7017E-T-P4S-UL-XL

HCM71918C-T-P4S-UL-XL   HCM71918E-T-P4S-UL-XL   HCM7018C-T-P4S-UL-XL   HCM7018E-T-P4S-UL-XL

HCM71919C-T-P4S-UL-XL   HCM71919E-T-P4S-UL-XL   HCM7019C-T-P4S-UL-XL   HCM7019E-T-P4S-UL-XL

HCM71920C-T-P4S-UL-XL   HCM71920E-T-P4S-UL-XL   HCM7020C-T-P4S-UL-XL   HCM7020E-T-P4S-UL-XL

HCM71921C-T-P4S-UL-XL   HCM71921E-T-P4S-UL-XL   HCM7021C-T-P4S-UL-XL   HCM7021E-T-P4S-UL-XL

HCM71922C-T-P4S-UL-XL   HCM71922E-T-P4S-UL-XL   HCM7022C-T-P4S-UL-XL   HCM7022E-T-P4S-UL-XL

HCM71924C-T-P4S-UL-XL   HCM71924E-T-P4S-UL-XL   HCM7024C-T-P4S-UL-XL   HCM7024E-T-P4S-UL-XL

HCM71926C-T-P4S-UL-XL   HCM71926E-T-P4S-UL-XL   HCM7026C-T-P4S-UL-XL   HCM7026E-T-P4S-UL-XL
