FAG主轴轴承 VCM系列

VCM型：

VCM系列X-life高速主轴轴承也拥有由陶瓷制成的滚珠，但其轴承套圈由新型高性能Vacrodur 材料制成。这种钢材具有极高的承载能力、耐磨性和很高的耐热性能，尤其是在润滑不足或受到污染等润滑不良的状况下。与传统的解决方案相比，VCM系列主轴轴承尤其能为电主轴提供全新的设计自由。

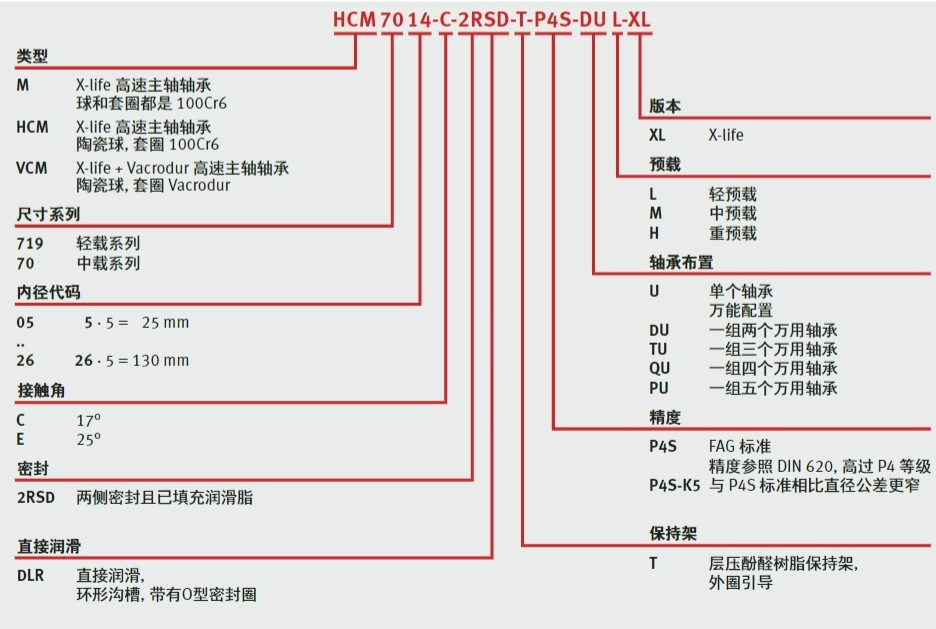

FAG M系列轴承型号字母释义：

VCM:X-life+Vacrodur高速主轴轴承陶瓷球，套圈Vacrodur

C:接触角17°

E:接触角25°

T:层压酚醛树脂保持架，外圈引导

P4S:FAG标准，精度参照DIN620,高过P4等级

U:代表单个轴承***装置

L:轻预载

XL:版本X-life

FAG  VCM系列主轴轴承型号推荐：

VCM71905C-T-P4S-UL-XL   VCM71905E-T-P4S-UL-XL   VCM7005C-T-P4S-UL-XL   VCM7005E-T-P4S-UL-XL

VCM71906C-T-P4S-UL-XL   VCM71906E-T-P4S-UL-XL   VCM7006C-T-P4S-UL-XL   VCM7006E-T-P4S-UL-XL

VCM71907C-T-P4S-UL-XL   VCM71907E-T-P4S-UL-XL   VCM7007C-T-P4S-UL-XL   VCM7007E-T-P4S-UL-XL

VCM71908C-T-P4S-UL-XL   VCM71908E-T-P4S-UL-XL   VCM7008C-T-P4S-UL-XL   VCM7008E-T-P4S-UL-XL

VCM71909C-T-P4S-UL-XL   VCM71909E-T-P4S-UL-XL   VCM7009C-T-P4S-UL-XL   VCM7009E-T-P4S-UL-XL

VCM71910C-T-P4S-UL-XL   VCM71910E-T-P4S-UL-XL   VCM7010C-T-P4S-UL-XL   VCM7010E-T-P4S-UL-XL

VCM71911C-T-P4S-UL-XL   VCM71911E-T-P4S-UL-XL   VCM7011C-T-P4S-UL-XL   VCM7011E-T-P4S-UL-XL

VCM71912C-T-P4S-UL-XL   VCM71912E-T-P4S-UL-XL   VCM7012C-T-P4S-UL-XL   VCM7012E-T-P4S-UL-XL

VCM71913C-T-P4S-UL-XL   VCM71913E-T-P4S-UL-XL   VCM7013C-T-P4S-UL-XL   VCM7013E-T-P4S-UL-XL

VCM71914C-T-P4S-UL-XL   VCM71914E-T-P4S-UL-XL   VCM7014C-T-P4S-UL-XL   VCM7014E-T-P4S-UL-XL

VCM71915C-T-P4S-UL-XL   VCM71915E-T-P4S-UL-XL   VCM7015C-T-P4S-UL-XL   VCM7015E-T-P4S-UL-XL

VCM71916C-T-P4S-UL-XL   VCM71916E-T-P4S-UL-XL   VCM7016C-T-P4S-UL-XL   VCM7016E-T-P4S-UL-XL

VCM71917C-T-P4S-UL-XL   VCM71917E-T-P4S-UL-XL   VCM7017C-T-P4S-UL-XL   VCM7017E-T-P4S-UL-XL

VCM71918C-T-P4S-UL-XL   VCM71918E-T-P4S-UL-XL   VCM7018C-T-P4S-UL-XL   VCM7018E-T-P4S-UL-XL

VCM71919C-T-P4S-UL-XL   VCM71919E-T-P4S-UL-XL   VCM7019C-T-P4S-UL-XL   VCM7019E-T-P4S-UL-XL

VCM71920C-T-P4S-UL-XL   VCM71920E-T-P4S-UL-XL   VCM7020C-T-P4S-UL-XL   VCM7020E-T-P4S-UL-XL

VCM71921C-T-P4S-UL-XL   VCM71921E-T-P4S-UL-XL   VCM7021C-T-P4S-UL-XL   VCM7021E-T-P4S-UL-XL

VCM71922C-T-P4S-UL-XL   VCM71922E-T-P4S-UL-XL   VCM7022C-T-P4S-UL-XL   VCM7022E-T-P4S-UL-XL

VCM71924C-T-P4S-UL-XL   VCM71924E-T-P4S-UL-XL   VCM7024C-T-P4S-UL-XL   VCM7024E-T-P4S-UL-XL

VCM71926C-T-P4S-UL-XL   VCM71926E-T-P4S-UL-XL   VCM7026C-T-P4S-UL-XL   VCM7026E-T-P4S-UL-XL
